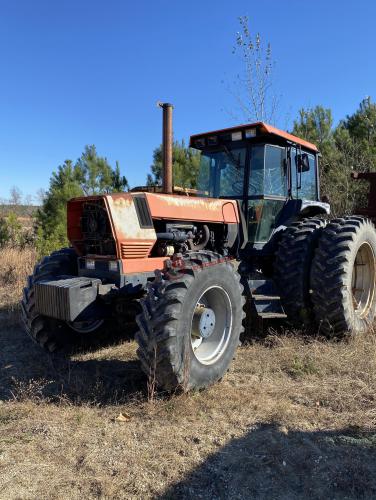

Deutz-Allis 9130 Tractors

Deutz-Allis 9130
Power: 150 hp[P]
Date of manufacture :
1989 - 1990
Production
Manufacturer:Deutz-Allis
Type:Row-Crop tractor
Factory:Coldwater, Ohio, USA
Deutz-Allis 9130 Power
PTO (claimed):135 hp
100.7 kW
Deutz-Allis 9130 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD optional
Steering:hydrostatic power
Transmission:18-speed partial power shift
Hydraulics
Type:closed
Valves:3
Pump flow:24 gpm
90.8 lpm
Tractor hitch
Rear Type:II,III
Rear lift:7,212 lbs
3271 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540,1000
Dimensions & Tires
Wheelbase:120 inches
304 cm
Weight:12,300 lbs
5579 kg
Front tire:11.00-16
Rear tire:18.4R-38
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
