Deutz F1M414 Tractors

Deutz F1M414
Power: 10 hp
Date of manufacture :
1936 - 1951
Production
Manufacturer:Deutz
Factory:Germany
Deutz F1M414 Power
Engine:10.8 hp
8.1 kW
Deutz F1M414 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:4-speed gear

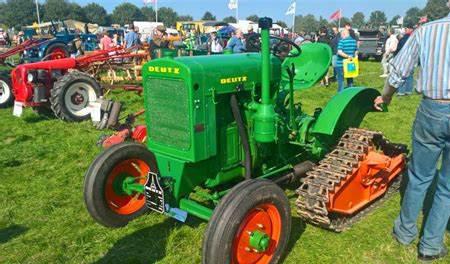

Photos
Deutz F1M414 photos...
Power Take-off (PTO)
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:56.3 inches
143 cm
Weight:2491 lbs
1129 kg
Front tire:5.00-16
Rear tire:8.00-20
Full dimensions and tires ...
Belt Pulley
Diameter:8.86 inches
22 cm
Width:3.94 inches
10 cm
RPM:1120
