Navigation: Home > Deutz > F1L514

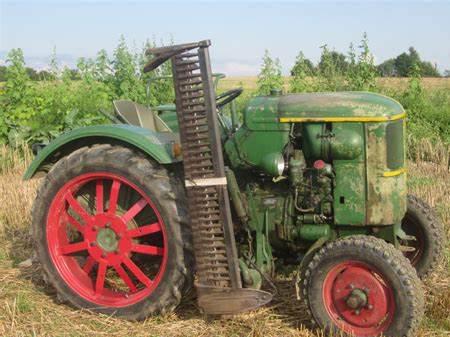

Deutz F1L514 Tractors

Deutz F1L514
Power: 14 hp
Date of manufacture :
1950 - 1957
Production
Manufacturer:Deutz
Factory:Germany
Deutz F1L514 Power
Engine:14.8 hp
11.0 kW
Deutz F1L514 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:4-speed gear
Power Take-off (PTO)
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:62.4 inches
158 cm
Weight:2833 lbs
1285 kg
Front tire:5.00-16
Rear tire:8.00-32
Full dimensions and tires ...
Belt Pulley
Diameter:8.86 inches
22 cm
Width:3.94 inches
10 cm
RPM:1100
