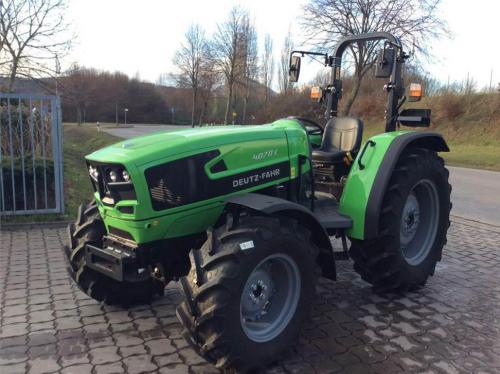

Deutz-Fahr 4070E Tractors
|
|
Power: 64 hp
Date of manufacture : 0000 - 0000 |
Production |
Manufacturer: | Deutz-Fahr
|
Type: | Utility tractor
|
Deutz-Fahr 4070E Power |
Engine (gross): | 64.4 hp 48.0 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Differential lock: | mechanical
|
Steering: | power
|
Brakes: | wet disc
|
Cab: | Two-post folding ROPS.
|
Transmissions: | 12-speed gear
|
| 8-speed partially synchronized
|
| 15-speed partially synchronized
|
Hydraulics |
Type: | open center
|
Valves: | 1 to 3
|
Pump flow: | 11.1 gpm 42.0 lpm
|
| 13.2 gpm 50.0 lpm *Optional
|
Tractor hitch |
Rear Type: | II
|
Control: | position and draft control
|
Rear lift: | 5512 lbs 2500 kg
|
| 7717 lbs 3500 kg *Optional
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540
|
| 540/540E*Optional
|
| 540/540E/1000*Optional
|
Dimensions & Tires |
2WD Wheelbase: | 85.3 inches 216 cm
|
4WD Wheelbase: | 82.7 inches 210 cm
|
Weight: | 6173 to 6614 pounds
|
Front tire: | 280/85R20
|
Rear tire: | 380/85R28
|
Full dimensions and tires ... |
Electrical |
Ground: | negative
|
Battery volts: | 12
|
|
