Deutz-Fahr 4080E Tractors

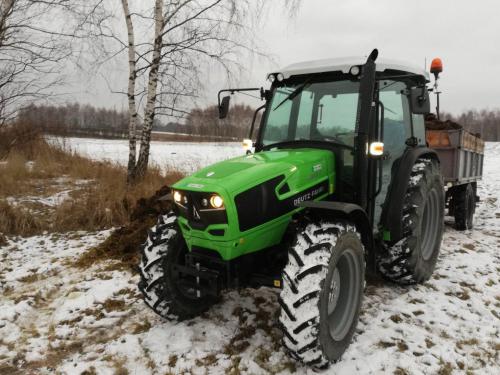

Deutz-Fahr 4080E
Power: 74 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Deutz-Fahr
Type:Utility tractor
Deutz-Fahr 4080E Power
Engine (gross):74.3 hp
55.4 kW
Deutz-Fahr 4080E Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmissions:12-speed gear
 8-speed partially synchronized
 15-speed partially synchronized
Hydraulics
Type:open center
Valves:1 to 3
Pump flow:11.1 gpm
42.0 lpm
 13.2 gpm
50.0 lpm *Optional
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:5512 lbs
2500 kg
 7717 lbs
3500 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
 540/540E*Optional
 540/540E/1000*Optional
Dimensions & Tires
2WD Wheelbase:85.3 inches
216 cm
4WD Wheelbase:82.7 inches
210 cm
Weight:6173 to 6614 pounds
Front tire:320/85R20
Rear tire:420/85R28
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
