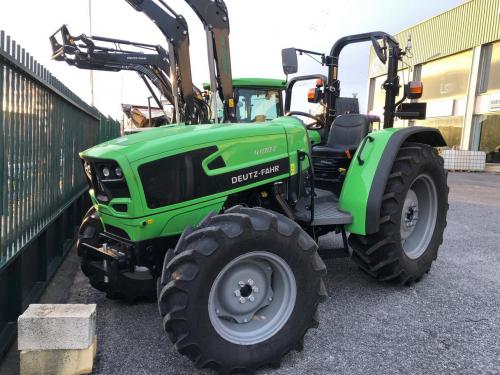

Deutz-Fahr 4100E Tractors
|
|
Power: 95 hp
Date of manufacture : 0000 - 0000 |
Production |
Manufacturer: | Deutz-Fahr
|
Type: | Utility tractor
|
Deutz-Fahr 4100E Power |
Engine (gross): | 95.2 hp 71.0 kW
|
Engine (max): | 95.2 hp 71.0 kW
|
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Differential lock: | electro-hydraulic
|
Steering: | power
|
Brakes: | wet disc
|
Cab: | Two-post folding ROPS.
|
Transmissions: | 15-speed partially synchronized
|
| 8-speed partially synchronized
|
Hydraulics |
Type: | open center
|
Valves: | 1 to 3
|
Pump flow: | 13.2 gpm 50.0 lpm
|
Tractor hitch |
Rear Type: | II
|
Control: | position and draft control
|
Rear lift: | 5512 lbs 2500 kg
|
| 7717 lbs 3500 kg *Optional
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540
|
| 540/540E*Optional
|
| 540/540E/1000*Optional
|
Dimensions & Tires |
Wheelbase: | 82.7 inches 210 cm
|
Weight: | 6614 lbs 3000 kg
|
Front tire: | 360/70R24
|
Rear tire: | 480/70R30
|
Full dimensions and tires ... |
Electrical |
Ground: | negative
|
Battery volts: | 12
|
|
