Deutz-Fahr 5105 Tractors

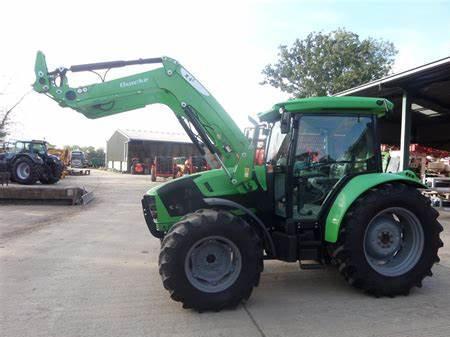

Deutz-Fahr 5105
Power: 103 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Deutz-Fahr
Type:Utility tractor
Deutz-Fahr 5105 Power
Engine (gross):103.3 hp
77.0 kW
Engine (max):108.5 hp
80.9 kW
Deutz-Fahr 5105 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:electro-hydraulic front and rear
Steering:power
Brakes:wet disc
Trailer brakes:hydraulic*Optional
 pneumatic*Optional
Cab:Cab standard with available air-conditioning.
Transmissions:20-speed partial power shift
 30-speed partial power shift
Hydraulics
Type:open center
Pump flow:14.5 gpm
54.9 lpm
 15.85 gpm
60.0 lpm *Optional
 23.8 gpm
90.1 lpm *Optional
Tractor hitch
Rear Type:II
Rear lift:7540 lbs
3420 kg
 10395 lbs
4715 kg *Optional
 11596 lbs
5259 kg *Optional
Front lift:4630 lbs
2100 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/540E
 1000/1000E*Optional
Front PTO:independent*Optional
Front RPM:1000
Dimensions & Tires
2WD Wheelbase:91.7 inches
232 cm
4WD Wheelbase:93.3 inches
236 cm
Weight:9149 lbs
4149 kg
Front tire:380/85R24
Rear tire:420/85R34
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:150
Charging volts:12
Battery CCA:650
Battery volts:12
Battery AH:100
