Navigation: Home > Deutz-Fahr > 5130

Deutz-Fahr 5130 Tractors

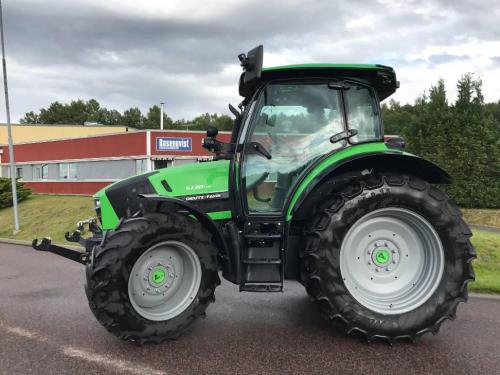

Deutz-Fahr 5130
Power: 188 hp
Date of manufacture :
2013 - 2017
Production
Manufacturer:Deutz-Fahr
Type:Utility tractor
Variants
5130TTV:CVT transmission
Deutz-Fahr 5130 Power
Engine (gross):188 hp
140.2 kW
Engine (max):124.7 hp
93.0 kW
Deutz-Fahr 5130 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmissions:30-speed partial power shift
 60-speed partial power shift
 infinitely variable transmission
Hydraulics
Pressure:2683 psi
185.0 bar
Pump flow:15.85 gpm
60.0 lpm
 23.8 gpm
90.1 lpm *Optional
Tractor hitch
Rear Type:II
Rear lift:10251.5 lbs
4650 kg
 14550.5 lbs
6600 kg *Optional
Front lift:4078.6 lbs
1850 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/540E/1000/1000E
 540/540E/1000*With TTV option.
Front PTO:independent
Clutch:electro-hydraulic
Front RPM:1000
Dimensions & Tires
Wheelbase:96.1 inches
244 cm
Weight:10957 to 11288 pounds
Front tire:440/65R28
Rear tire:540/65R38
Full dimensions and tires ...
Electrical
Charging system:alternator
Battery volts:12
