Deutz-Fahr 5120 Tractors

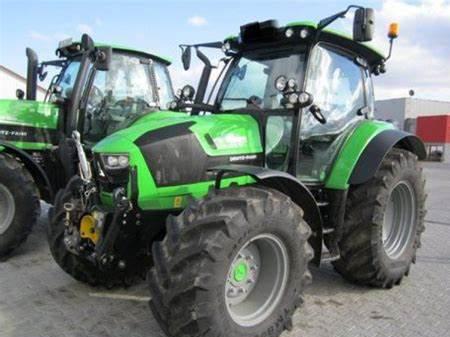

Deutz-Fahr 5120
Power: 111 hp
Date of manufacture :
2013 - 2017
Production
Manufacturer:Deutz-Fahr
Type:Utility tractor
Variants
5120TTV:CVT transmission
Deutz-Fahr 5120 Power
Engine (gross):111.3 hp
83.0 kW
Engine (max):116.7 hp
87.0 kW
Deutz-Fahr 5120 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmissions:30-speed partial power shift
 60-speed partial power shift
 infinitely variable transmission
Hydraulics
Pressure:2683 psi
185.0 bar
Pump flow:15.85 gpm
60.0 lpm
 23.8 gpm
90.1 lpm *Optional
Tractor hitch
Rear Type:II
Rear lift:10251.5 lbs
4650 kg
 14550.5 lbs
6600 kg *Optional
Front lift:4078.6 lbs
1850 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/540E/1000/1000E
 540/540E/1000*With TTV option.
Front PTO:independent
Clutch:electro-hydraulic
Front RPM:1000
Dimensions & Tires
Wheelbase:96.1 inches
244 cm
Weight:10957 to 11288 pounds
Front tire:420/70R28
Rear tire:520/70R38
Full dimensions and tires ...
Electrical
Charging system:alternator
Battery volts:12
