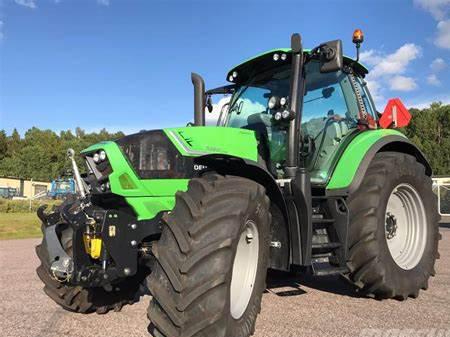

Deutz-Fahr 6180 TTV Tractors
 |
|
Power: 165 hp
Date of manufacture : 2012 - 2022 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Type: | Row-Crop tractor
|
| Deutz-Fahr 6180 TTV Power |
| Engine (gross): | 165 hp
123.0 kW
|
| Engine (max): | 176 hp
131.2 kW
|
| Deutz-Fahr 6180 TTV Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | MaxiVision Cab standard with air-conditioning.
|
| Hydraulics |
| Type: | load sensing
|
| Pressure: | 2901 psi
200.0 bar
|
| Valves: | 4 to 7
|
| Pump flow: | 31.7 gpm
120.0 lpm
|
| | 42.3 gpm
160.1 lpm *Optional.
|
| Tractor hitch |
| Rear Type: | III/II
|
| Rear lift: | 20282.5 lbs
9200 kg
|
| Front lift: | 8818.5 lbs
4000 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/540E/1000/1000E
|
| Engine RPM: | 540@1946
540E@1645
1000@1946
1000E@1645
|
| Front PTO: | independent
|
| Front RPM: | 1000
|
| | 1000E*Optional.
|
| Dimensions & Tires |
| Wheelbase: | 109 inches
276 cm
|
| Front tire: | 16.9R28
|
| Rear tire: | 20.8R38
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Battery volts: | 12
|
|
