Navigation: Home > Deutz-Fahr > 7230 TTV

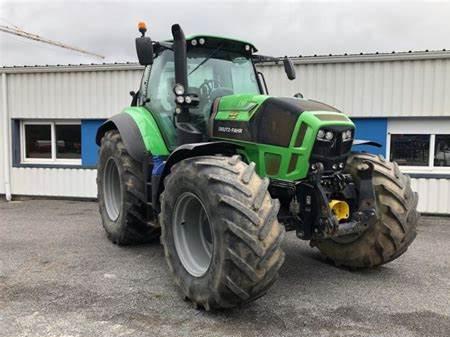

Deutz-Fahr 7230 TTV Tractors

Deutz-Fahr 7230 TTV
Power: 204 hp
Date of manufacture :
2012 - 2022
Production
Manufacturer:Deutz-Fahr
Type:Row-Crop tractor
Deutz-Fahr 7230 TTV Power
Engine (gross):204 hp
152.1 kW
Engine (max):22046 hp
16439.7 kW
Deutz-Fahr 7230 TTV Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:automatic front and rear differential locks
Steering:power
Brakes:wet disc
Trailer brakes:hydraulic
 pneumatic
Cab:Cab standard with air-conditioning and suspension.
Hydraulics
Type:load sensing
Valves:4 to 7
Pump flow:31.7 gpm
120.0 lpm
 42.3 gpm
160.1 lpm *Optional
Steering flow:11.6 gpm
43.9 lpm
Tractor hitch
Rear Type:III/II
Control:position and draft control
Rear lift:22046 lbs
10000 kg
Front Hitch:III/II*Optional.
Front lift:9920.8 lbs
4500 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540E/1000/1000E
Front PTO:independent
Clutch:electro-hydraulic
Front RPM:1000
Dimensions & Tires
Wheelbase:110.9 inches
281 cm
Weight:20062 lbs
9100 kg
Front tire:600/70R30
Rear tire:620/70R42
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:200
Battery volts:12
Battery AH:200
