Deutz-Fahr DX 110 Tractors

Deutz-Fahr DX 110
Power: 102 hp
Date of manufacture :
1978 - 1983
Production
Manufacturer:Deutz-Fahr
Type:Row-Crop tractor
Variants
DX 110:2WD
DX 110A:4WD
Deutz-Fahr DX 110 Power
Engine:102 hp
76.1 kW
Deutz-Fahr DX 110 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:dry disc
Transmission:15-speed
Photos

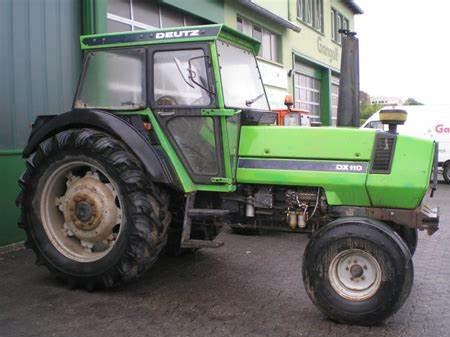

Deutz-Fahr DX 110 photos...
Hydraulics
Pressure:2485 psi
171.3 bar
Pump flow:14.8 gpm
56.0 lpm
Tractor hitch
Rear Type:II
Rear lift:9603 lbs
4355 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:wet disc
Rear RPM:540/1000 (1.375)
Dimensions & Tires
Wheelbase:105.9 inches
268 cm
Weight:10297 lbs
4670 kg
Front tire:10.00-16
Rear tire:18.4-38
Full dimensions and tires ...
