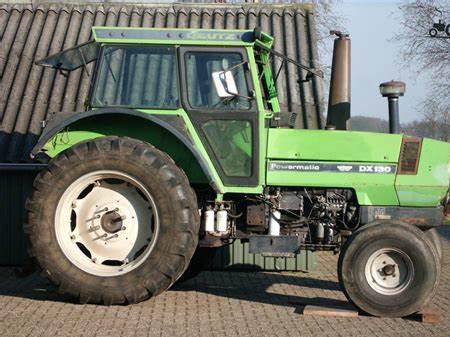

Deutz-Fahr DX 130 Tractors

Deutz-Fahr DX 130
Power: 133 hp[P]
Date of manufacture :
1981 - 1983
Production
Manufacturer:Deutz-Fahr
Type:Row-Crop tractor
Deutz-Fahr DX 130 Power
PTO (claimed):120 hp
89.5 kW
Drawbar (tested):102.63 hp
76.5 kW
PTO (tested):121.27 hp
90.4 kW
Deutz-Fahr DX 130 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Differential lock:hydraulic foot-operated
Steering:hydrostatic power
Brakes:hydraulic disc
Cab:Cab standard with air-conditioning.
Transmission:24-speed two-speed power shift
Hydraulics
Type:open center
Valves:1 to 3
Total flow:27 gpm
102.2 lpm
Tractor hitch
Rear Type:III/II
Rear lift (at ends):14330 lbs
6500 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Engine RPM:540@2070
1000@2070
Dimensions & Tires
Wheelbase:108.5 inches
275 cm
Weight:13940 lbs
6323 kg
Front tire:11.00-16
Rear tire:18.4-38 (2WD)
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
