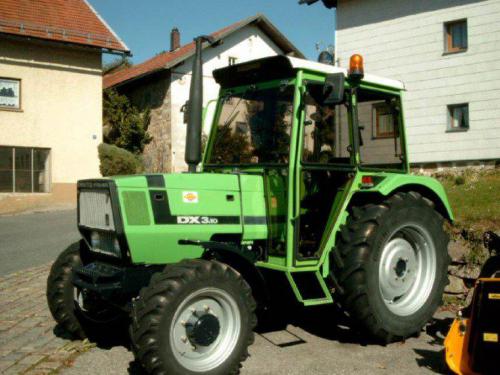

Deutz-Fahr DX 3.10 Tractors
 |
|
Power: 46 hp
Date of manufacture : 1984 - 1990 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Type: | Utility tractor
|
| Factory: | Germany
|
| Deutz-Fahr DX 3.10 Power |
| Engine: | 46 hp
34.3 kW
|
| Deutz-Fahr DX 3.10 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | mechanical drum
|
| Cab: | Four-post ROPS with canopy.
|
| Transmissions: | 8-speed partially synchronized
|
| | 12-speed partially synchronized
|
| | 16-speed two-speed power shift
|
| | 24-speed two-speed power shift
|
| Capacity |
| Fuel: | 19.8 gal
74.9 L
|
| Hydraulic system: | 4 gal
15.1 L
|
| | 7.5 gal
28.4 L *Optional
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 4 gal
15.1 L
|
| | 7.5 gal
28.4 L *Optional
|
| Pressure: | 2538 psi
175.0 bar
|
| Rear valves: | 1 to 3
|
| Front valves: | 2*Optional
|
| Pump flow: | 9.8 gpm
37.1 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position and draft control
|
| Rear lift: | 4189 lbs
1900 kg
|
| Front Hitch: | II*Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Front PTO: | independent*Optional
|
| Clutch: | dry disc
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 79 inches
200 cm
|
| 4WD Wheelbase: | 82 inches
208 cm
|
| Weight: | 5776 to 6173 pounds
|
| Front tire: | 7.50x16
|
| 2WD Rear tire: | 14.9x28
|
| Full dimensions and tires ... | |
