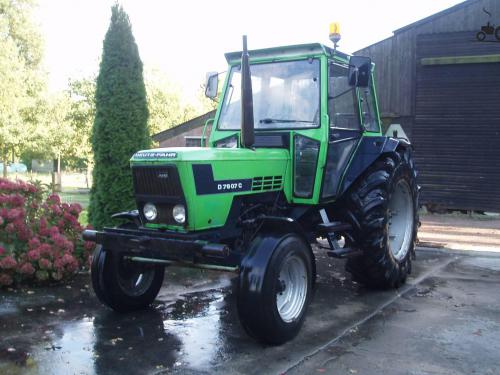

Deutz-Fahr D 7807 Tractors
 |
|
Power: 75 hp
Date of manufacture : 1981 - 1984 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Type: | Utility tractor
|
| Deutz-Fahr D 7807 Power |
| Engine: | 75 hp
55.9 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | hydraulic drum
|
| Cab: | Four-post ROPS. Cab available with heat.
|
| Transmission: | 12-speed synchronized
|
| Photos |
| | Deutz-Fahr D 7807 photos... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2538 psi
175.0 bar
|
| Valves: | 1 to 3
|
| Pump flow: | 10.6 gpm
40.1 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 5732 lbs
2600 kg
|
| | 7276 lbs
3300 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 94.8 inches
240 cm
|
| 4WD Wheelbase: | 95.7 inches
243 cm
|
| Weight: | 6614 to 8091 pounds
|
| Front tire: | 7.50-20
|
| 2WD Rear tire: | 16.9-38
|
| Full dimensions and tires ... | |
