Navigation: Home > Deutz-Fahr > Intrac 2002

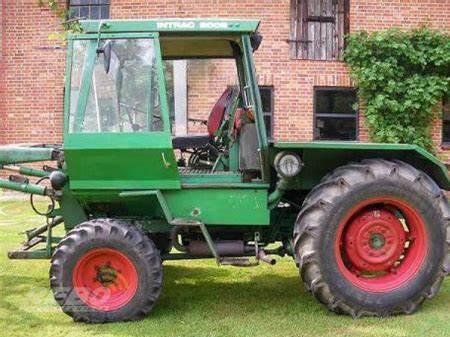

Deutz-Fahr Intrac 2002 Tractors
|
|
Power: 50 hp
Date of manufacture : 1972 - 1974 |
Production |
Manufacturer: | Deutz-Fahr
|
Type: | Tool Carrier tractor
|
Deutz-Fahr Intrac 2002 Power |
Engine: | 50.3 hp 37.5 kW
|
Deutz-Fahr Intrac 2002 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
2WD Steering: | manual
|
4WD Steering: | power
|
Transmissions: | 8-speed synchronized
|
| 12-speed creeper
|
Hydraulics |
Pump flow: | 7.2 gpm 27.3 lpm
|
Tractor hitch |
Rear Type: | II/I
|
Rear lift: | 4930 lbs 2236 kg
|
Front Hitch: | I
|
Front lift: | 2579 lbs 1169 kg
|
Power Take-off (PTO) |
Rear RPM: | 540/1000 (1.375)
|
Engine RPM: | 2100
|
Front RPM: | 1000 (1.375)
|
Engine RPM: | 2100
|
Dimensions & Tires |
2WD Wheelbase: | 84.7 inches 215 cm
|
4WD Wheelbase: | 86.6 inches 219 cm
|
Weight: | 5372 to 6724 pounds
|
Front tire: | 7.50-16
|
2WD Rear tire: | 12.4/11-32
|
Full dimensions and tires ... | |
