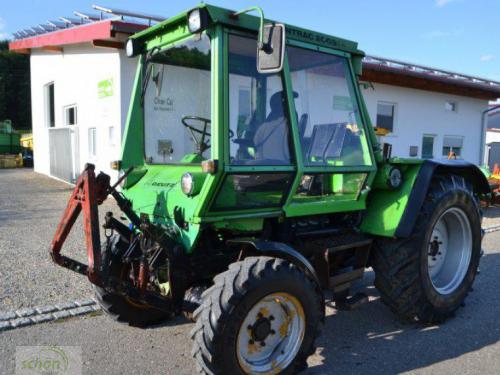

Deutz-Fahr Intrac 2003 Tractors
|
|
Power: 59 hp
Date of manufacture : 1974 - 1979 |
Production |
Manufacturer: | Deutz-Fahr
|
Type: | Tool Carrier tractor
|
Deutz-Fahr Intrac 2003 Power |
Engine: | 59 hp 44.0 kW
|
Deutz-Fahr Intrac 2003 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
2WD Steering: | manual
|
4WD Steering: | power
|
Cab: | Cab standard.
|
Transmissions: | 8-speed
|
| 8-speed synchronized
|
| 12-speed creeper
|
Hydraulics |
Pump flow: | 10.5 gpm 39.7 lpm
|
Tractor hitch |
Rear Type: | II/I
|
Rear lift: | 5291 lbs 2399 kg
|
Front Hitch: | I
|
Front lift: | 2205 lbs 1000 kg
|
Power Take-off (PTO) |
Rear RPM: | 540/1000 (1.375)
|
Engine RPM: | 540@1890 1000@1875
|
Front RPM: | 1000 (1.375)
|
Engine RPM: | 1000@1875
|
Dimensions & Tires |
4WD Wheelbase: | 86.6 inches 219 cm
|
Weight: | 6240 to 7606 pounds
|
Front tire: | 7.50-18
|
4WD Rear tire: | 12.4-32
|
Full dimensions and tires ... | |
