| Production |
| Manufacturer: | Farmall (a part of International Harvester)
|
| Type: | Standard-tread tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 59 (IH wheatland/industrial)
|
| | 2,414 (Farmall)
|
| Original price: | $11,800 (1971)
|
| Variants |
| IH 1026: | wheatland
|
| Farmall 1026: | row-crop
|
| Farmall 1026 Power |
| Drawbar (tested): | 80.24 hp
59.8 kW
|
| PTO (tested): | 112.45 hp
83.9 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | differential hydraulic dry disc
|
| Cab: | Open operator station.
|
| Transmission: | hydrostatic
|
| Photos |

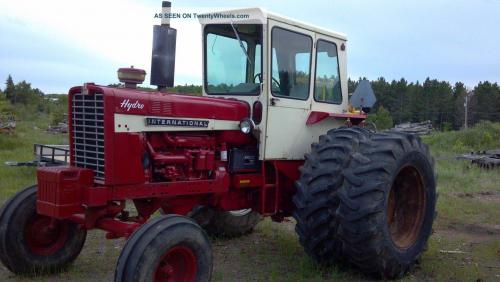

| | Farmall 1026 photos... |
| Tractor hitch |
| Rear Type: | II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Weight: | 11,100 lbs
5034 kg
|
| Front tire: | 11L-15
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 1026 Serial Numbers |
| Location: | Hydrostatic housing, left side
|
| 1970: | 7501 (IH)
|
| 1971: | 7550 (IH)
|
| 1970: | 7501 (Farmall)
|
| 1971: | 9707 (Farmall)
|
how to read serial numbers...
| |
