| Production |
| Manufacturer: | Farmall (a part of International Harvester)
|
| Factory: | Rock Island, Illinois, USA
|
| Original price: | $9,600 (1971 )
|
| Farmall 826 Power |
| Gear Drawbar (claimed): | 79 hp
58.9 kW
|
| Hydro Drawbar (claimed): | 61 hp
45.5 kW
|
| Gear PTO (claimed): | 92 hp
68.6 kW
|
| Hydro PTO (claimed): | 84 hp
62.6 kW
|
| Drawbar (tested): | 78.92 hp
58.9 kW
|
| PTO (tested): | 92.19 hp
68.7 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic dry disc
|
| Cab: | Open operator station. Cab optional.
|
| Transmissions: | 16-speed two-speed power shift
|
| | hydrostatic
|
| Photos |

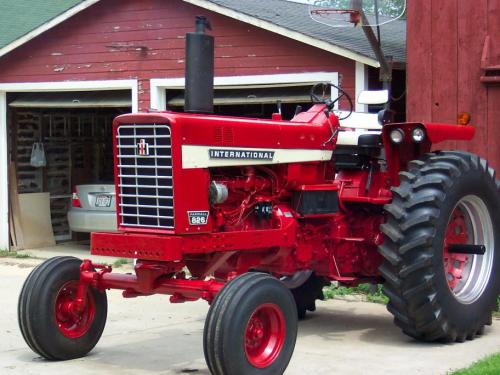

| | Farmall 826 photos... |
| Hydraulics |
| Type: | open center
|
| Tractor hitch |
| Rear Type: | II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 105 inches
266 cm
|
| Weight: | 9860 lbs
4472 kg
|
| Front tire: | 9.5L-15
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| 826 Serial Numbers |
| Location: | Clutch housing, left side
|
photo of 826 serial number
| | 1969: | 7501 (Farmall)
|
| 1970: | 8153 (Farmall)
|
| 1971: | 16352 (Farmall)
|
| 1969: | 7501 (IH)
|
| 1970: | 7518 (IH)
|
| 1971: | 7719 (IH)
|
how to read serial numbers...
| |
