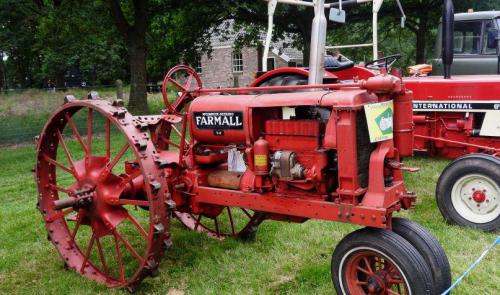

Farmall F-12 Tractors

Farmall F-12
Power: 14 hp[B]
Date of manufacture :
1932 - 1938
Production
Manufacturer:Farmall (a part of International Harvester)
Factories:Chicago, Illinois, USA
 Neuss, Germany
Total built:123,442 USA
 2,848 Germany
Variants
F-12-G:German-built
F-12-G4:German-built, four-speed
W-12:McCormick standard-front
Farmall F-12 Power
Drawbar (claimed):10 hp
7.5 kW
Belt (claimed):13 hp
9.7 kW
Plows:1
Drawbar (tested):12.31 hp
9.2 kW
Belt (tested):16.20 hp
12.1 kW
Farmall F-12 Engines
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmissions:3-speed unsynchronized gear
 4-speed
Photos
Farmall F-12 photos...
Power Take-off (PTO)
Rear RPM:540 (1.125)
Dimensions & Tires
Wheelbase:76 inches
193 cm
Weight:2700 lbs
1224 kg
Front tire:23x6
Rear tire:54x6
Full dimensions and tires ...
F-12 Serial Numbers
1932:501 (Chicago)
1933:526 (Chicago)
1934:4881 (Chicago)
1935:17411 (Chicago)
1936:48660 (Chicago)
1937:81837 (Chicago)
1938:117518 (Chicago)
1938:NT101 (Neuss)

how to read serial numbers...

Belt Pulley
Diameter:12.375 inches
31 cm
Width:6.25 inches
15 cm
RPM:800
Speed:2591 ft/min
789.74 meters/min
