| Production |
| Manufacturer: | Farmall (a part of International Harvester)
|
| Type: | Row-Crop tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 154,398
|
| Original price: | $1000 (1936 )
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | mechanical band
|
| Cab: | Open operator station.
|
| Transmission: | 4-speed sliding gear
|
| Photos |

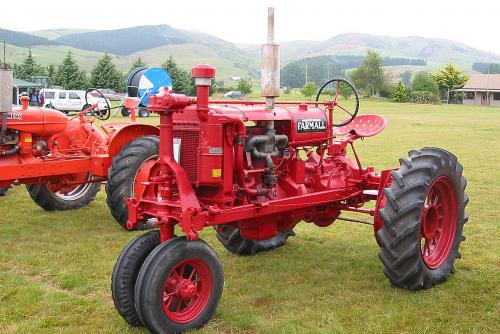

| | Farmall F-20 photos... |
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 540 (1.125)
|
| Engine RPM: | 505@1200
|
| Dimensions & Tires |
| Wheelbase: | 85 inches
215 cm
|
| Weight: | 4400 lbs
1995 kg
|
| Front tire: | 25x4
|
| Rear tire: | 40x6
|
| Full dimensions and tires ... |
| F-20 Serial Numbers |
| Location: | Serial number plate under the fuel tank of the Farmall F-20.
|
photo of F-20 serial number
| | 1932: | FA-501
|
| 1933: | ------
|
| 1934: | FA-3001
|
| 1935: | FA-9760
|
| 1936: | FA-41123
|
| 1937: | FA-72982
|
| 1938: | FA-112201
|
| 1939: | FA-136042
|
| Final: | FA-148810
|
| 1934: | TA-135000 (old style countershaft)
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 14 inches
35 cm
|
| Width: | 6.5 inches
16 cm
|
| RPM: | 654
|
| Speed: | 2395 ft/min
730.00 meters/min
|
|
