Fendt 309 Vario Tractors

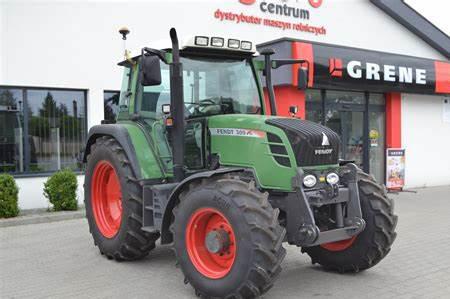

Fendt 309 Vario
Power: 79 hp
Date of manufacture :
2006 - 2014
Production
Manufacturer:Fendt (a part of AGCO)
Fendt 309 Vario Power
Engine (net):79.1 hp
59.0 kW
Fendt 309 Vario Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
2WD Brakes:drum
4WD Brakes:wet disc
Cab:Cab standard with heat. Air-conditioning optional.
Transmission:continuously variable transmission
Hydraulics
Type:open center
Pressure:2900 psi
200.0 bar
Valves:2 to 4
Pump flow:20.6 gpm
78.0 lpm
Tractor hitch
Rear lift:11865 lbs
5381 kg
Front lift:6607 lbs
2996 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E/1000
Front PTO:independent*Optional
Front RPM:540
 1000
Dimensions & Tires
Wheelbase:92.5 inches
234 cm
Weight:8378 to 9105 pounds
Front tire:11.00-16
2WD Rear tire:480/70R34
Electrical
Ground:negative
Charging system:alternator
Charging amps:143
Charging volts:14
Battery volts:12
Battery AH:90
