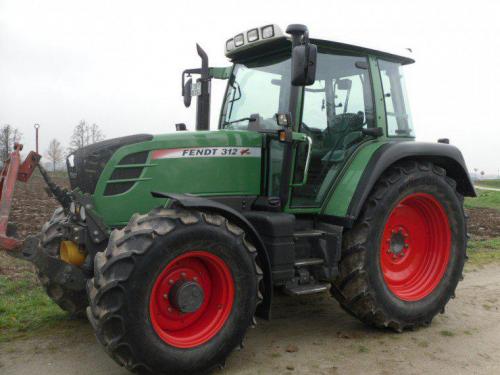

Fendt 312 Vario Tractors

Fendt 312 Vario
Power: 108 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Fendt (a part of AGCO)
Fendt 312 Vario Power
Engine (net):108.6 hp
81.0 kW
Fendt 312 Vario Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with heat. Air-conditioning optional.
Transmission:continuously variable transmission
Hydraulics
Type:open center
Pressure:2900 psi
200.0 bar
Valves:2 to 4
Pump flow:20.6 gpm
78.0 lpm
Tractor hitch
Rear lift:11865 lbs
5381 kg
Front lift:6607 lbs
2996 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E/1000
Front PTO:independent*Optional
Front RPM:540
 1000
Dimensions & Tires
Wheelbase:92.5 inches
234 cm
Weight:9590 lbs
4350 kg
Front tire:480/65R24
Rear tire:540/65R38
Electrical
Ground:negative
Charging system:alternator
Charging amps:143
Charging volts:14
Battery volts:12
Battery AH:90
