| Production |
| Manufacturer: | Fendt
|
| Factory: | Marktoberdoft, Germany
|

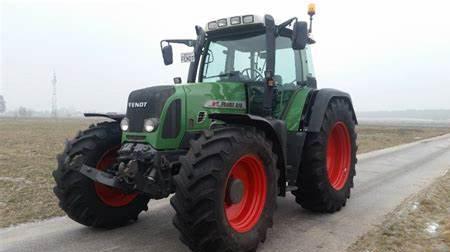

| Fendt 818 Vario Power |
| Engine (gross): | 186 hp
138.7 kW
|
| Engine (net): | 170 hp
126.8 kW
|
| Engine (max): | 192 hp
143.2 kW
|
| PTO (claimed): | 160 hp
119.3 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Brakes: | wet discs
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | continuously variable transmission (IVT)
|
| Photos |
| | Fendt 818 Vario photos... |
| Hydraulics |
| Type: | load sensing
|
| Pressure: | 2,900 psi
200.0 bar
|
| Valves: | 3 or 4
|
| Total flow: | 29.1 gpm
110.1 lpm
|
| Tractor hitch |
| Rear lift: | 13,345 lbs
6053 kg
|
| Front lift: | 5,520 lbs
2503 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540/540E/1000
|
| Front RPM: | 1000 (optional)
|
| Dimensions & Tires |
| Wheelbase: | 107 inches
271 cm
|
| Weight: | 15,480 lbs
7021 kg
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Battery CCA: | 1020
|
| Battery volts: | 12
|
| Battery AH: | 170
|
|
