| Production |
| Manufacturer: | Fendt
|
| Factory: | Marktoberdoft, Germany
|

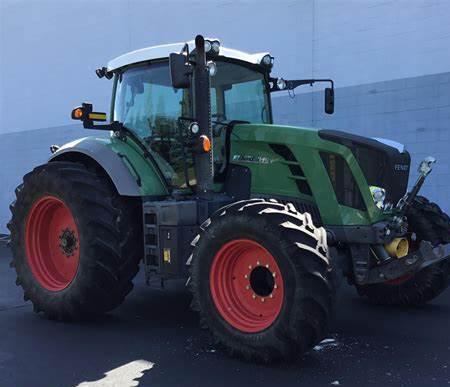

| Fendt 819 Vario Power |
| Engine (gross): | 196 hp
146.2 kW
|
| Engine (net): | 180 hp
134.2 kW
|
| Engine (max): | 205 hp
152.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Cab: | X5 Cab standard with air-conditioning. Optional CD/MP3 player.
|
| Transmission: | continuously variable transmission (IVT)
|
| Hydraulics |
| Total flow: | 28.8 gpm
109.0 lpm
|
| | 40.2 gpm
152.2 lpm (optional)
|
| | 51 gpm
193.0 lpm (optional)
|
| Tractor hitch |
| Rear lift: | 24,980 lbs
11330 kg
|
| Front lift: | 10,000 lbs
4536 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540E/1000
|
| | 1000/1000E (optional)
|
| Front RPM: | 1000 (optional)
|
| Dimensions & Tires |
| Wheelbase: | 114.2 inches
290 cm
|
| Weight: | 20,500 lbs
9298 kg
|
| Front tire: | 540/65R30
|
| Rear tire: | 650/65R42
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 300
|
| Battery volts: | 12
|
| Battery AH: | 170
|
|
