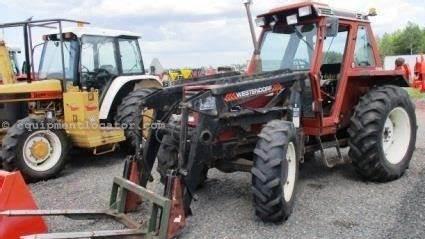

Fiat-Hesston 70-90 Tractors

Fiat-Hesston 70-90
Power: 70 hp
Date of manufacture :
0000 - 0000
Production
Distributor:Hesston
Manufacturer:Fiat
Type:Utility tractor
Original price:$31,100 (1985 )
Variants
70-90DT:4WD
Hesston 70-90 Power
Engine:70 hp
52.2 kW
PTO (claimed):62 hp
46.2 kW
Drawbar (tested):53.92 hp
40.2 kW
PTO (tested):62.25 hp
46.4 kW
Hesston 70-90 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Differential lock:mechanical rear
Steering:power
Brakes:differential hydraulic wet disc
Cab:Four-post ROPS. Cab optional.
Transmissions:12-speed synchromesh
 12-speed mechanical shuttle
 20-speed creeper
Hydraulics
Type:open center
Pressure:2702 psi
186.3 bar
Rear valves:2 or 3
Pump flow:11 gpm
41.6 lpm
Tractor hitch
Rear Type:II
Rear lift:5212 lbs
2364 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@2198
Dimensions & Tires
2WD Wheelbase:89.25 inches
226 cm
4WD Wheelbase:89.5 inches
227 cm
Weight:6798 to 7436 pounds
Front tire:7.50-16
Rear tire:16.9-30
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:65
Battery volts:12
