Fiat-Hesston 80-66 Tractors

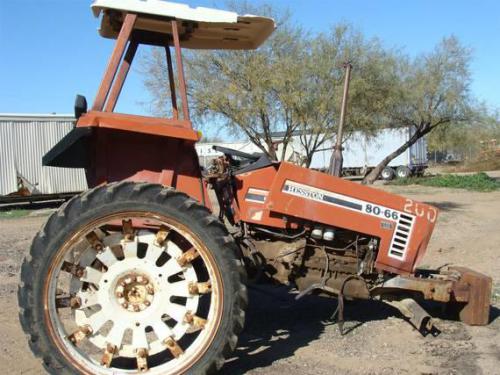

Fiat-Hesston 80-66
Power: 80 hp
Date of manufacture :
1985 - 1991
Production
Distributor:Hesston
Manufacturer:Fiat
Type:Utility tractor
Original price:$26,500 (1990 )
Variants
80-66:utility 2WD
80-66DT:utility 4WD
80-66OR:orchard 2WD
80-66ORDT:orchard 4WD
80-66HC:high-crop
80-66HCDT:high-crop 4WD
Hesston 80-66 Power
Engine:80 hp
59.7 kW
Drawbar (claimed):62 hp
46.2 kW
PTO (claimed):70 hp
52.2 kW
Drawbar (tested):62.21 hp
46.4 kW
PTO (tested):70.43 hp
52.5 kW
Hesston 80-66 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:differential mechanical wet disc
Cab:Four-post ROPS. Canopy optional.
Transmissions:12-speed partially synchronized
 12-speed mechanical shuttle
 20-speed creeper
Hydraulics
Type:open center
Pressure:2700 psi
186.2 bar
Valves:1 to 3
Total flow:11 gpm
41.6 lpm
Tractor hitch
Rear Type:II
Control:position and lower-link draft control
Rear lift:5194 lbs
2355 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/ground
 540/1000*Optional
Dimensions & Tires
2WD Wheelbase:90.7 inches
230 cm
4WD Wheelbase:88.5 inches
224 cm
Weight:5800 to 6535 pounds
Front tire:7.50-16
2WD Rear tire:18.4-30
Electrical
Charging system:alternator
Charging amps:33
Battery volts:12
