Fordson Fordson F Tractors
 |
|
Power: 20 hp
Date of manufacture : 1917 - 1928 |
| Production |
| Manufacturer: | Fordson (a part of Ford)
|
| Type: | Standard-tread tractor
|
| Factories: | Dearborn, MI
|
| | Cork, Ireland
|
| Total built: | 755,278 (747,681 in USA, 7,597 in Ireland)
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Transmission: | 3-speed constant mesh gear
|
| Photos |

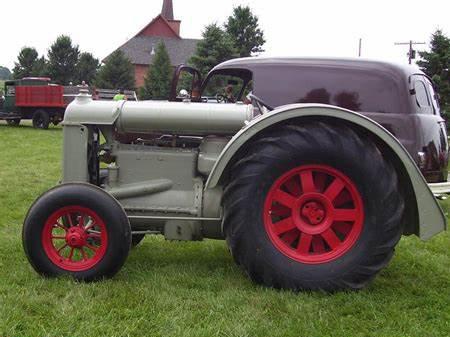

| | Fordson Fordson F photos... |
| Dimensions & Tires |
| Wheelbase: | 63 inches
160 cm
|
| Weight: | 2,920 lbs
1324 kg
|
| Rear tire: | 42x12
|
| Full dimensions and tires ... |
| Fordson F Serial Numbers |
| Location: | Below the cylinder head on the right side of the engine.
|
photo of Fordson F serial number
| | 1917: | 1 (USA)
|
| 1918: | 260 (USA)
|
| 1919: | 34427 (USA)
|
| 1920: | 100001 (USA)
|
| 1921: | 158312 (USA)
|
| 1922: | 201026 (USA)
|
| 1923: | 268583 (USA)
|
| 1924: | 370351 (USA)
|
| 1925: | 455360 (USA)
|
| 1926: | 557608 (USA)
|
| 1927: | 629830 (USA)
|
| 1919: | 63001 (Ireland)
|
| 1920: | 65001 (Ireland)
|
| 1921: | 108230 (Ireland)
|
| 1922: | 109673 (Ireland)
|
how to read serial numbers...
|
| External Links |
| Fordson F: Photos and information on the Fordson F from Kurt Ristniemi |
| Belt Pulley |
| Diameter: | 9.5 inches
24 cm
|
| Width: | 6.5 inches
16 cm
|
| RPM: | 1000
|
| Speed: | 2480 ft/min
755.90 meters/min
|
|
