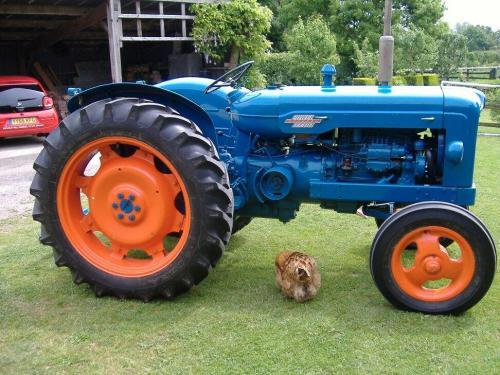

Fordson Power Major Tractors
 |
|
Power: 52 hp[P]
Date of manufacture : 1958 - 1961 |
| Production |
| Manufacturer: | Fordson (a part of Ford)
|
| Factory: | Dagenham, England
|
| Fordson Power Major Power |
| Drawbar (tested): | 42.63 hp
31.8 kW
|
| PTO (tested): | 47.65 hp
35.5 kW
|
| Fordson Power Major Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power assist
|
| Brakes: | differential mechanical shoe
|
| Cab: | Open operator station.
|
| Transmission: | 6-speed unsymchronized gear
|
| Photos |
| | Fordson Power Major photos... |
| Capacity |
| Fuel: | 17.4 gal
65.9 L
|
| Rear axle: | 43.2 qts
40.9 L
|
| Hydraulics |
| Type: | gear pump
|
| Pressure: | 2200 psi
151.7 bar
|
| Pump flow: | 5.65 gpm
21.4 lpm
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| | live (optional)
|
| Rear RPM: | 540
|
| Engine RPM: | 540@1600
|
| Dimensions & Tires |
| Wheelbase: | 80 inches
203 cm
|
| Weight: | 4540 to 5200 pounds
|
| Front tire: | 6.00-19
|
| Rear tire: | 11-36
|
| Full dimensions and tires ... |
| Power Major Serial Numbers |
| Location: | Engine block, right side
|
| 1958: | 1481091
|
| 1959: | 1494448
|
| 1960: | 1538065
|
| 1961: | 1583906
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 8.5 inches
21 cm
|
| Width: | 5 inches
12 cm
|
| RPM: | 1700
|
| Speed: | 3783 ft/min
1153.06 meters/min
|
| Electrical |
| Ground: | positive
|
| Batteries: | 2 (diesel)
|
| | 1 (gasoline)
|
| Battery CCA: | 144
|
| Battery volts: | 6 (diesel)
|
| | 12 (gasoline)
|
|
