Navigation: Home > Hinomoto > E2604

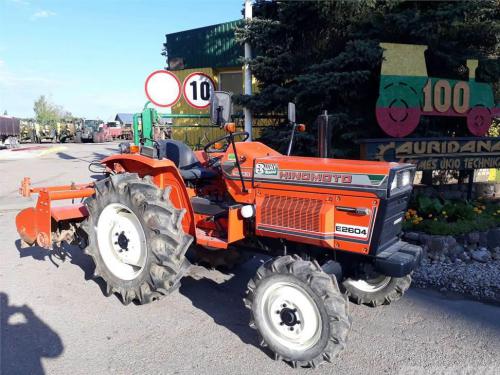

Hinomoto E2604 Tractors

Hinomoto E2604
Power: 26 hp
Date of manufacture :
1982 - 1992
Production
Manufacturer:Hinomoto
Type:Compact Utility tractor
Factory:Japan
Variants
E2602:2WD
E2604:4WD
Hinomoto E2604 Power
Engine:26 hp
19.4 kW
Hinomoto E2604 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Cab:Open operator station.
Transmission:20-speed
Tractor hitch
Rear Type:JIS1
Power Take-off (PTO)
Rear RPM:540 (1.375)
Engine RPM:580@2500
817@2500
1063@2500
1419@2500
Dimensions & Tires
Wheelbase:66.7 inches
169 cm
Weight:3153 lbs
1430 kg
Front tire:7-16
Rear tire:12.4-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
