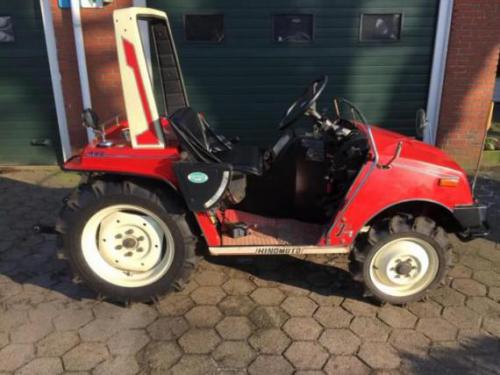

Hinomoto JF1 Tractors

Hinomoto JF1
Power: 20 hp
Date of manufacture :
1984 - 1994
Production
Manufacturer:Hinomoto
Factory:Japan
Hinomoto JF1 Power
Engine (gross):20 hp
14.9 kW
Hinomoto JF1 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Brakes:dry shoe
Transmission:9-speed
Capacity
Fuel:4.7 gal
17.8 L
Hydraulic system:4.5 gal
17.0 L
Hydraulics
Capacity:4.5 gal
17.0 L
Pressure:2490 psi
171.7 bar
Power Take-off (PTO)
Rear RPM:593, 867
Dimensions & Tires
Weight:1,863 lbs
845 kg
Front tire:5-14
Rear tire:8-18
Full dimensions and tires ...
Electrical
Charging system:Hitachi LR135-588 alternator
Charging amps:35
Battery CCA:433
Battery volts:1
