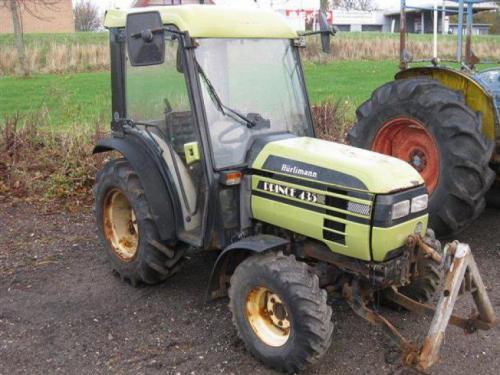

Hurlimann Prince 435 Tractors
 |
|
Power: 35 hp
Date of manufacture : 1999 - 2003 |
| Production |
| Manufacturer: | Hurlimann
|
| Type: | Compact Utility tractor
|
| Original price: | $19,000 (1999)
|
| Hurlimann Prince 435 Power |
| Engine: | 35 hp
26.1 kW
|
| PTO (claimed): | 25.5 hp
19.0 kW
|
| Hurlimann Prince 435 Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | mechanical wet disc
|
| Cab: | Two-post ROPS. Cab optional.
|
| Transmission: | 12-speed synchronized shuttle
|
| Hydraulics |
| Valves: | 1 (4 optional)
|
| Pump flow: | 7.4 gpm
28.0 lpm
|
| Total flow: | 3.7 gpm
14.0 lpm
|
| Tractor hitch |
| Rear Type: | 1
|
| Control: | position and draft control
|
| Rear lift: | 2,645 lbs
1199 kg
|
| Front Hitch: | 1 (optional)
|
| Front lift: | 882 lbs
400 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Mid PTO: | optional
|
| Front PTO: | optional
|
| Dimensions & Tires |
| Wheelbase: | 64.17 inches
162 cm
|
| Weight: | 2,513 lbs
1139 kg
|
| Front tire: | 7.00-12
|
| Rear tire: | 32/70R20
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
