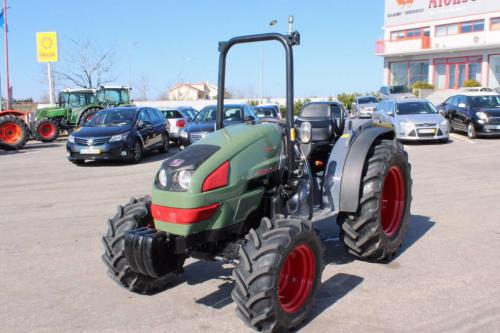

Hurlimann Prince 55 Tractors
 |
|
Power: 51 hp
Date of manufacture : 2007 - 2017 |
| Production |
| Manufacturer: | Hurlimann (a part of SAME)
|
| Type: | Compact Utility tractor
|
| Hurlimann Prince 55 Power |
| Engine (gross): | 51 hp
38.0 kW
|
| Engine (net): | 47 hp
35.0 kW
|
| Hurlimann Prince 55 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic rear
|
| Steering: | hydrostatic power
|
| Brakes: | mechanical wet disc
|
| Cab: | Two-post ROPS.
|
| Transmissions: | 12-speed partially synchronized
|
| | 16-speed partially synchronized
|
| Hydraulics |
| Pump flow: | 7.9 gpm
29.9 lpm
|
| Tractor hitch |
| Control: | depth and draft control
|
| Rear lift: | 2646 lbs
1200 kg
|
| Front lift: | 882 lbs
400 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| | 540/540E
|
| Mid PTO: | independent
|
| Mid RPM: | 2000
|
| Front PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 68.7 inches
174 cm
|
| Weight: | 2910 lbs
1319 kg
|
| Rear tire: | 360/70R24
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
