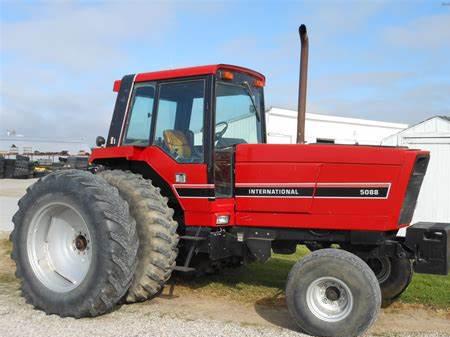

International Harvester 5088 Tractors
 |
|
Power: 150 hp[P]
Date of manufacture : 1981 - 1985 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 8,176
|
| Original price: | $54,300 (1985 )
|
| International Harvester 5088 Power |
| Drawbar (claimed): | 119 hp
88.7 kW
|
| PTO (claimed): | 135 hp
100.7 kW
|
| Drawbar (tested): | 116.19 hp
86.6 kW
|
| PTO (tested): | 136.12 hp
101.5 kW
|
| International Harvester 5088 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Cab standard with heat and A/C. Optional burgundy or western interior finish.
|
| Transmission: | 18-speed partial power shift
|
| Photos |
| | International Harvester 5088 photos... |
| Capacity |
| Fuel: | 70 gal
264.9 L
|
| Hydraulic system: | 43.5 gal
164.6 L
|
| Hydraulics |
| Type: | closed center
|
| Capacity: | 43.5 gal
164.6 L
|
| Valves: | 2
|
| Pump flow: | 25 gpm
94.6 lpm
|
| | 40 gpm
151.4 lpm *Optional
|
| Total flow: | 67 gpm
253.6 lpm
|
| | 82 gpm
310.4 lpm *Optional
|
| Steering flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Rear lift: | 6990 lbs
3170 kg
|
| | 8280 lbs
3755 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 111.6 inches
283 cm
|
| Weight: | 13765 to 16010 pounds
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 5088 Serial Numbers |
| Location: | Right side of tractor frame
|
| 1981: | 501
|
| 1982: | 3551
|
| 1983: | 6015
|
| 1984: | 7307
|
| 1985: | 8623
|
how to read serial numbers...
| |
