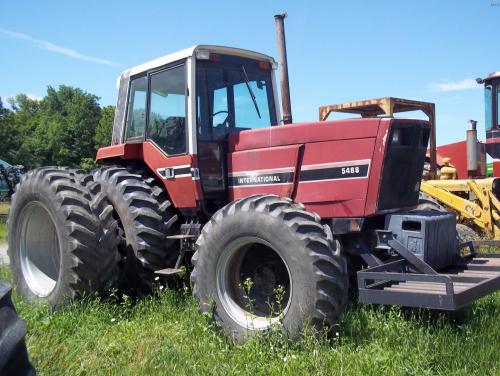

International Harvester 5488 Tractors
 |
|
Power: 205 hp[P]
Date of manufacture : 1981 - 1985 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 3,951
|
| Original price: | $66,615 (1985 2WD )
|
| Original price: | $78,340 (1985 4WD )
|
| International Harvester 5488 Power |
| Drawbar (claimed): | 163 hp
121.5 kW
|
| PTO (claimed): | 185 hp
138.0 kW
|
| Drawbar (tested): | 163.44 hp
121.9 kW
|
| PTO (tested): | 187.22 hp
139.6 kW
|
| International Harvester 5488 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Cab standard with heat and air-conditioning. Optional burgundy or western interior finish.
|
| Transmission: | 18-speed partial power shift
|
| Photos |
| | International Harvester 5488 photos... |
| Capacity |
| Fuel: | 87 gal
329.3 L
|
| Hydraulic system: | 43.5 gal
164.6 L
|
| Hydraulics |
| Type: | closed center
|
| Capacity: | 43.5 gal
164.6 L
|
| Valves: | 2
|
| Pump flow: | 25 gpm
94.6 lpm
|
| | 40 gpm
151.4 lpm *Optional
|
| Total flow: | 67 gpm
253.6 lpm
|
| | 82 gpm
310.4 lpm *Optional
|
| Steering flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Rear lift: | 8076 lbs
3663 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 111.6 inches
283 cm
|
| Weight: | 14710 to 17240 pounds
|
| Front tire: | 14L-16.1
|
| Rear tire: | 20.8-38
|
| Full dimensions and tires ... |
| 5488 Serial Numbers |
| Location: | Right side of tractor frame
|
photo of 5488 serial number
| | 1981: | 501
|
| 1982: | 523
|
| 1983: | 2416
|
| 1984: | 3112
|
| 1985: | 4390
|
| Final: | 4452
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
