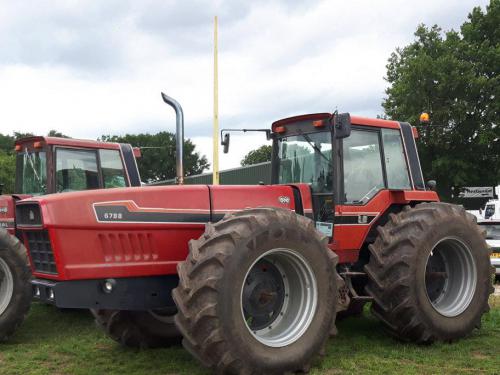

International Harvester 6788 Tractors
 |
|
Power: 200 hp
Date of manufacture : 1981 - 1984 |
| Production |
| Manufacturer: | International Harvester
|
| Factory: | Rock Island, Illinois, USA
|
| Total built: | 347
|
| Original price: | $70,500 (1984 )
|
| International Harvester 6788 Power |
| Engine: | 200 hp
149.1 kW
|
| Drawbar (claimed): | 142 hp
105.9 kW
|
| PTO (claimed): | 170 hp
126.8 kW
|
| Drawbar (tested): | 142.05 hp
105.9 kW
|
| PTO (tested): | 170.57 hp
127.2 kW
|
| International Harvester 6788 Engine |
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | articulated power
|
| Cab: | Cab standard with burgundy finish, heat, and air-conditioning. Optional western finish interior.
|
| Transmission: | 12-speed two-range power shift
|
| Photos |
| | International Harvester 6788 photos... |
| Capacity |
| Fuel: | 89 gal
336.9 L
|
| | 139 gal
526.1 L *Optional
|
| Hydraulic system: | 23.6 gal
89.3 L
|
| Hydraulics |
| Capacity: | 23.6 gal
89.3 L
|
| Valves: | 2 to 4
|
| Pump flow: | 18 gpm
68.1 lpm
|
| Steering flow: | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 110 inches
279 cm
|
| Weight: | 16920 lbs
7674 kg
|
| Front tire: | 18.4-38
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| 6788 Serial Numbers |
| Location: | transmission housing, right side
|
| 1981: | 8801
|
| 1982: | 8810
|
| 1983: | 8840
|
| 1984: | 8871
|
| 1985: | 8946
|
how to read serial numbers...
| |
