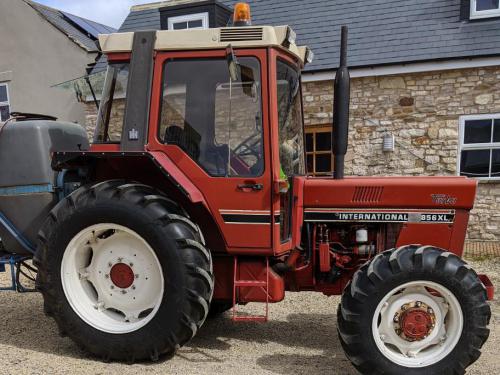

International Harvester 856XL Tractors
 |
|
Power: 85 hp
Date of manufacture : 1983 - 1985 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Row-Crop tractor
|
| Factory: | Neuss, Germany
|
| International Harvester 856XL Power |
| Engine: | 85 hp
63.4 kW
|
| PTO (claimed): | 79.1 hp
59.0 kW
|
| International Harvester 856XL Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | XL cab standard.
|
| Transmissions: | 8-speed gear
|
| | 16-speed two-speed power shift
|
| Photos |
| | International Harvester 856XL photos... |
| Capacity |
| Fuel: | 28 gal
106.0 L
|
| Front axle: | 9.5 qts
9.0 L
|
| Hydraulics |
| Pressure: | 2465 psi
170.0 bar
|
| Pump flow: | 7.9 gpm
29.9 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 8708 lbs
3949 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| 2WD Wheelbase: | 93.9 inches
238 cm
|
| 4WD Wheelbase: | 92.4 inches
234 cm
|
| Weight: | 8465 to 9082 pounds
|
| Front tire: | 7.50-18
|
| 2WD Rear tire: | 16.9R34
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 33
|
| Battery volts: | 12
|
| Battery AH: | 88
|
|
