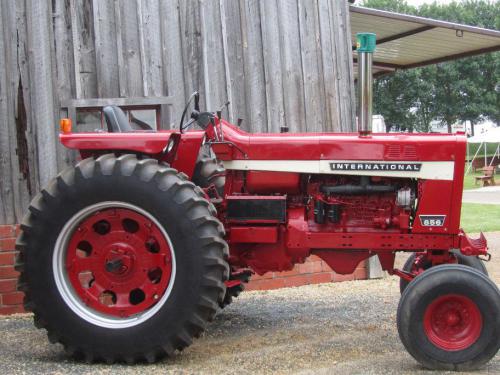

International Harvester 856 Tractors
|
|
Power: 105 hp[P]
Date of manufacture : 1967 - 1971 |
Production |
Manufacturer: | International Harvester
|
Factory: | Rock Island, Illinois, USA
|
Original price: | $9,640 (1971 )
|
Variants |
Farmall 856: | row-crop tractor
|
International Harvester 856 Power |
Drawbar (claimed): | 90 hp 67.1 kW
|
PTO (claimed): | 100.4 hp 74.9 kW
|
Drawbar (tested): | 87.2 hp 65.0 kW
|
PTO (tested): | 100.49 hp 74.9 kW
|
International Harvester 856 Engines |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Steering: | power
|
Brakes: | differential hydraulic dry disc
|
Cab: | Open operator station. Cab optional.
|
Transmissions: | 8-speed
|
| 16-speed two-speed power shift
|
Photos |
| International Harvester 856 photos... |
Hydraulics |
Type: | open center
|
Pump flow: | 12 gpm 45.4 lpm
|
Tractor hitch |
Rear Type: | II
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Dimensions & Tires |
Weight: | 10,290 lbs 4667 kg
|
Front tire: | 10.00-16
|
Rear tire: | 18.4-38
|
Full dimensions and tires ... |
856 Serial Numbers |
Location: | On clutch housing, left side
|
photo of 856 serial number
| 1967: | 7501
|
1968: | 7904
|
1969: | 9016
|
1970: | 9544
|
1971: | 9653
|
how to read serial numbers...
| |
