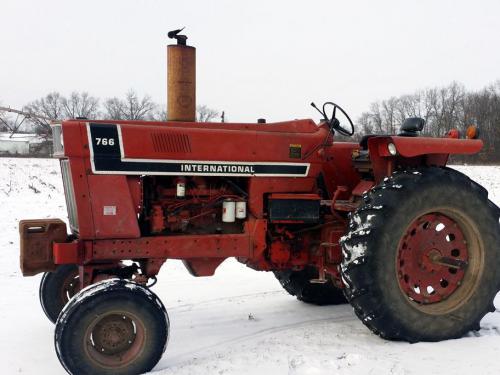

International Harvester A-766 Tractors
|
|
Power: 0
Date of manufacture : 1972 - 1978 |
Production |
Manufacturer: | International Harvester
|
Type: | Row-Crop tractor
|
Factory: | Geelong, Australia
|
Total built: | 10,799
|
International Harvester A-766 Power |
International Harvester A-766 Engine |
Mechanical |
Chassis: | 4x2 2WD
|
Steering: | hydrostatic power
|
Brakes: | hydraulic dry disc
|
Cab: | Open operator station. Cab optional.
|
Transmissions: | 8-speed sliding gear
|
| 16-speed partial power shift
|
Hydraulics |
Type: | open center
|
Pump flow: | 12 gpm 45.4 lpm
|
Tractor hitch |
Rear Type: | II
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
Dimensions & Tires |
Wheelbase: | 102.7 inches 260 cm
|
Weight: | 10,300 lbs 4672 kg
|
Front tire: | 9.5L-15
|
Rear tire: | 18.4-34
|
Full dimensions and tires ... |
A-766 Serial Numbers |
Location: | Left side of clutch housing
|
1972: | 501
|
1973: | 1140
|
1974: | 1811
|
1975: | 2553
|
1976: | 3270
|
1977: | 3999
|
1978: | 4604
|
Final: | 4771
|
how to read serial numbers...
| |
