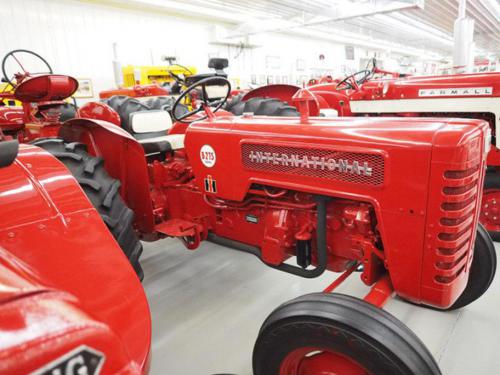

International Harvester B-275 Tractors
 |
|
Power: 38 hp
Date of manufacture : 1958 - 1968 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Bradford, England
|
| Total built: | 52,432
|
| Original price: | $2,800 (1961)
|
| International Harvester B-275 Power |
| Engine: | 38 hp
28.3 kW
|
| Drawbar (claimed): | 30.9 hp
23.0 kW
|
| PTO (claimed): | 34.1 hp
25.4 kW
|
| Drawbar (tested): | 30.23 hp
22.5 kW
|
| PTO (tested): | 32.88 hp
24.5 kW
|
| International Harvester B-275 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Cab: | Open operator station.
|
| Transmission: | 8-speed
|
| Photos |
| | International Harvester B-275 photos... |
| Capacity |
| Fuel: | 10.2 gal
38.6 L
|
| Hydraulic system: | 3 gal
11.4 L
|
| Hydraulics |
| Capacity: | 3 gal
11.4 L
|
| Pressure: | 2050 psi
141.3 bar
|
| Total flow: | 6.5 gpm
24.6 lpm
|
| Tractor hitch |
| Rear Type: | 1/2
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 74.1 inches
188 cm
|
| Weight: | 3500 to 3740 pounds
|
| Front tire: | 5.50-16
|
| Rear tire: | 11-28
|
| B-275 Serial Numbers |
| Location: | Serial number plate on the right side of the tractor, on the clutch housing.
|
photo of B-275 serial number
| | 1958: | 501
|
| 1959: | 633
|
| 1960: | 12161
|
| 1961: | 29468
|
| 1962: | 39540
|
| 1963: | 43120
|
| 1964: | 46418
|
| 1965: | 48977
|
| 1966: | 51040
|
| 1967: | 52933
|
| 1968: | 54712
|
how to read serial numbers...
| |
