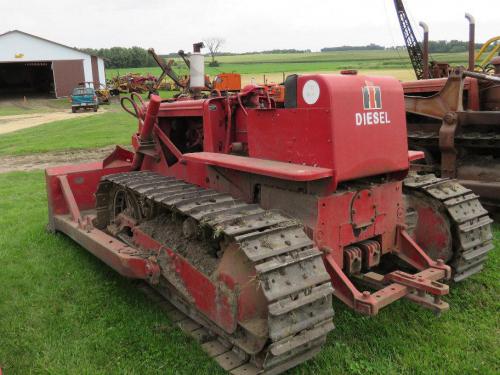

International Harvester TD-14A Tractors
 |
|
Power: 80 hp[B]
Date of manufacture : 1949 - 1958 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Agricultural Crawler tractor
|
| Factory: | Melrose Park, Illinois, USA
|
| International Harvester TD-14A Power |
| Drawbar (claimed): | 60.5 hp
45.1 kW
|
| Belt (claimed): | 72 hp
53.7 kW
|
| Drawbar (tested): | 62.68 hp
46.7 kW
|
| Belt (tested): | 71.79 hp
53.5 kW
|
| International Harvester TD-14A Engine |
| Mechanical |
| Chassis: | crawler
|
| Brakes: | contracting band
|
| Cab: | Open operator station.
|
| Transmission: | 6-speed gear
|
| Photos |
| | International Harvester TD-14A photos... |
| Power Take-off (PTO) |
| Rear PTO: | optional
|
| Rear RPM: | 540
|
| Dimensions & Tracks |
| Weight: | 15975 to 18300 pounds
|
| tracks |
| Full dimensions and tracks ... |
| TD-14A Serial Numbers |
| Location: | Serial number plate on the upper-left of the TD-14A dashboard.
|
photo of TD-14A serial number
| | 1949: | 26760 (TDF)
|
| 1950: | 27082 (TDF)
|
| 1951: | 29361 (TDF)
|
| 1952: | 32427 (TDF)
|
| 1953: | 34525 (TDF)
|
| 1954: | 37344 (TDF)
|
| 1955: | 39061 (TDF)
|
| Final: | 39300 (TDF)
|
| 1955: | 39301 (TD141)
|
| 1956: | 40862 (TD141)
|
| Final: | 41550 (TD141)
|
| 1956: | 41551 (TD142)
|
| 1957: | 43968 (TD142)
|
| 1958: | 45010 (TD142)
|
| Final: | 45558 (TD142)
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 11.75 inches
29 cm
|
| Width: | 11 inches
27 cm
|
| RPM: | 875
|
| Speed: | 2692 ft/min
820.52 meters/min
|
|
