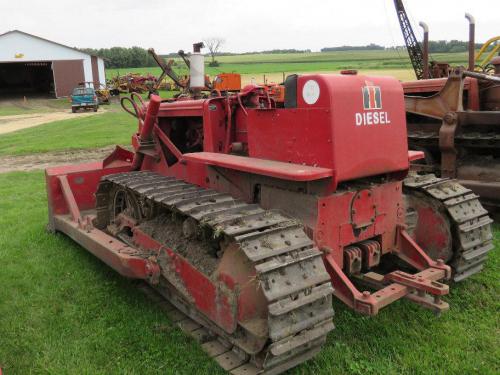

International Harvester TD-14 Tractors
 |
|
Power: 71 hp[B]
Date of manufacture : 1939 - 1958 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Agricultural Crawler tractor
|
| Factory: | Melrose Park, Illinois, USA
|
| Total built: | 26,259
|
| Variants |
| T-14: | gas crawler
|
| TD-14: | diesel crawler
|
| International Harvester TD-14 Power |
| Drawbar (claimed): | 53.5 hp
39.9 kW
|
| Belt (claimed): | 64 hp
47.7 kW
|
| Drawbar (tested): | 51.82 hp
38.6 kW
|
| Belt (tested): | 61.56 hp
45.9 kW
|
| International Harvester TD-14 Engine |
| Mechanical |
| Chassis: | crawler
|
| Cab: | Open operator station.
|
| Transmission: | 6-speed gear
|
| Photos |
| | International Harvester TD-14 photos... |
| Dimensions & Tracks |
| Weight: | 17500 lbs
7938 kg
|
| 16-inch tracks |
| Full dimensions and tracks ... |
| TD-14 Serial Numbers |
| Location: | Serial number plate on the upper-left of the TD-14 dashboard.
|
| 1939: | TDF501
|
| 1940: | TDF575
|
| 1941: | TDF2045
|
| 1942: | TDF3856
|
| 1943: | TDF3580
|
| 1944: | TDF7451
|
| 1945: | TDF10728
|
| 1946: | TDF12704
|
| 1947: | TDF14437
|
| 1948: | TDF21027
|
| 1949: | TDF23357
|
| Final: | TDF26759
|
how to read serial numbers...
|
| Belt Pulley |
| Diameter: | 12.25 inches
31 cm
|
| Width: | 11 inches
27 cm
|
| RPM: | 844
|
| Speed: | 2706 ft/min
824.79 meters/min
|
|
