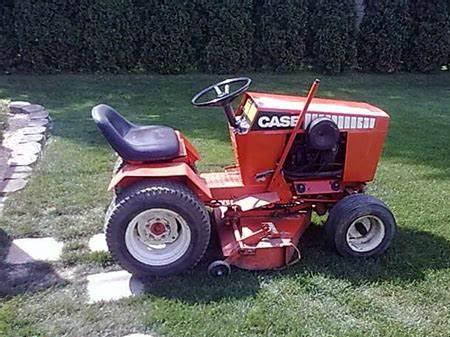

Power: 10 hp Date of manufacture : 1968 - 1988
Production Manufacturer J.I. Case Type Garden tractor Factory Winneconne, Wisconsin, USA J.I. Case 220 Engine J.I. Case 220 Transmission Mechanical Chassis 4x2 2WD Brakes band Cab Open operator station. Photos J.I. Case 220 photos... Capacity Fuel 3 gal 11.4 L Hydraulic system 1.5 gal 5.7 L Hydraulics Type open center Capacity 1.5 gal 5.7 L Pressure 2000 psi 137.9 bar Pump flow 8 gpm 30.3 lpm Tractor hitch Type sleeve hitch Dimensions & Tires Wheelbase 46 inches 116 cm Weight 715 lbs 324 kg Front tire 6.50-8 Rear tire 8.00-16 Full dimensions and tires ... 220 Serial Numbers 220 Serial Location Serial number plate on dashboard, below steering column. Electrical Ground negative Charging system alternator Charging amps 15 Battery volts 12 Battery AH 24

J.I. Case lawn tractors 190	Power: 12 hp	Date of manufacture : 1966 - 0000

J.I. Case lawn tractors 195	Power: 12 hp	Date of manufacture : 1967 - 1968

J.I. Case lawn tractors 210	Power: 10 hp	Date of manufacture : 1973 - 1983

J.I. Case lawn tractors 210 XC	Power: 0	Date of manufacture : 1984 - 1985

J.I. Case lawn tractors 220	Power: 10 hp	Date of manufacture : 1968 - 1988

J.I. Case lawn tractors 222	Power: 12 hp	Date of manufacture : 1969 - 1988

J.I. Case lawn tractors 224	Power: 14 hp	Date of manufacture : 1973 - 1988

J.I. Case lawn tractors 226	Power: 16 hp	Date of manufacture : 1984 - 1988

J.I. Case lawn tractors 442	Power: 12 hp	Date of manufacture : 1969 - 1972
