Power: 12 hp Date of manufacture : 1969 - 1988

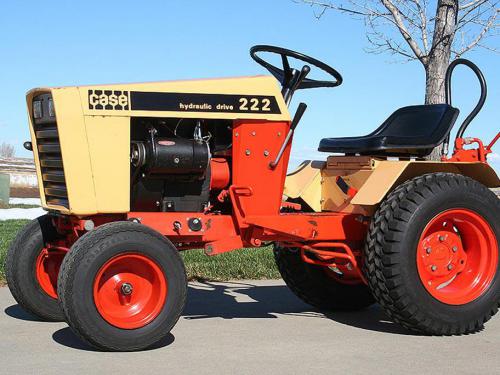

Production Manufacturer J.I. Case Type Garden tractor Factory Winneconne, Wisconsin, USA J.I. Case 222 Engine J.I. Case 222 Transmission Mechanical Chassis 4x2 2WD Steering manual Brakes band Cab Open operator station. Photos J.I. Case 222 photos... Capacity Fuel 3 gal 11.4 L Hydraulic system 1.5 gal 5.7 L Hydraulics Type open center Capacity 1.5 gal 5.7 L Pressure 2000 psi 137.9 bar Pump flow 8 gpm 30.3 lpm Tractor hitch Type sleeve hitch Dimensions & Tires Wheelbase 46 inches 116 cm Weight 715 lbs 324 kg Front tire 6.50-8 Rear tire 8.00-16 Full dimensions and tires ... 222 Serial Numbers 1969 ----- 1970 ----- 1971 ----- 1972 9657591 1973 9675012 1974 9698656 1975 9705780 1976 9723204 1977 9735954 1978 9750158 1979 9762850 1980 9781240 1981 14005650 1982 14020590 1983 14036263 1984 14055508 1985 14069279 1986 14069604 1987 14108037 1988 14108456 FAQ: How to read a serial number table. 222 Serial Location Serial number plate on dashboard, below steering column. Electrical Ground negative Charging system alternator Charging amps 15 Battery volts 12 Battery AH 24

J.I. Case lawn tractors 195	Power: 12 hp	Date of manufacture : 1967 - 1968

J.I. Case lawn tractors 210	Power: 10 hp	Date of manufacture : 1973 - 1983

J.I. Case lawn tractors 210 XC	Power: 0	Date of manufacture : 1984 - 1985

J.I. Case lawn tractors 220	Power: 10 hp	Date of manufacture : 1968 - 1988

J.I. Case lawn tractors 222	Power: 12 hp	Date of manufacture : 1969 - 1988

J.I. Case lawn tractors 224	Power: 14 hp	Date of manufacture : 1973 - 1988

J.I. Case lawn tractors 226	Power: 16 hp	Date of manufacture : 1984 - 1988

J.I. Case lawn tractors 442	Power: 12 hp	Date of manufacture : 1969 - 1972

J.I. Case lawn tractors 444	Power: 14 hp	Date of manufacture : 1969 - 1988
