Navigation: Home > John Deere > 2240

John Deere 2240 Tractors

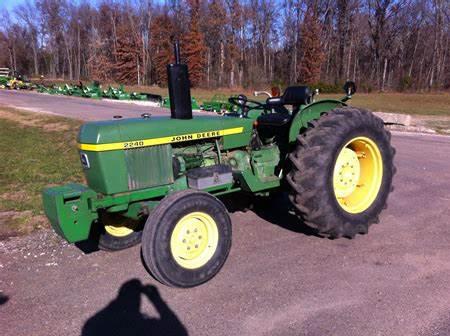

John Deere 2240
Power: 55 hp[P]
Date of manufacture :
1976 - 1982
Production
Manufacturer:John Deere
Type:Utility tractor
Factory:Mannheim, Baden-Württemberg, Germany
Variants
2240:utility
2240-O:orchard
John Deere 2240 Power
PTO (claimed):50 hp
37.3 kW
Drawbar (tested):39.58 hp
29.5 kW
PTO (tested):50.37 hp
37.6 kW
John Deere 2240 Engine
Mechanical
Chassis:4x2 2WD
Final drives:planetary
Differential lock:mechanical rear
Steering:power assist
Brakes:hydraulic wet disc
Cab:Open operator station.
Transmissions:8-speed collar shift
 16-speed two-speed power shift
Photos
John Deere 2240 photos...
Hydraulics
Type:closed center
Pump flow:9 gpm
34.1 lpm
Tractor hitch
Rear Type:II/I
Rear lift:2243 lbs
1017 kg
Power Take-off (PTO)
Rear PTO:live
 independent*Optional
Rear RPM:540
Dimensions & Tires
Wheelbase:80.65 inches
204 cm (straight axle)
 74.2 inches
188 cm (swept axle)
Weight:4255 to 4950 pounds
Front tire:6.50-16
Rear tire:13.6-28
Full dimensions and tires ...
2240 Serial Numbers
Location:Serial number tag on the front-right of the John Deere 2240 frame, above the front axle.
photo of 2240 serial number

1976:179298
1977:221716
1978:277267
1979:305307
1980:337767
1981:392292
1982:418608

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Batteries:1
 2*Optional
Battery volts:12
