John Deere 2250 Tractors

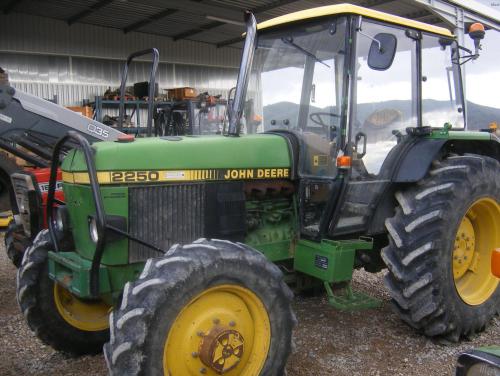

John Deere 2250
Power: 62 hp
Date of manufacture :
1987 - 1994
Production
Manufacturer:John Deere
Type:Utility tractor
Factory:Mannheim, Baden-Württemberg, Germany
John Deere 2250 Power
Engine:62 hp
46.2 kW
John Deere 2250 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Differential lock:mechanical rear
Steering:power assist
 hydrostatic*With four-wheel drive and SG2 cab option.
Brakes:hydraulic wet disc
Cab:ROPS. MC1 or Sound-Gard cab optional. CC2 cab available in 1991.
Transmissions:8-speed
 16-speed two-speed power shift
Photos
John Deere 2250 photos...
Hydraulics
Type:closed-center constant pressure
Pressure:2756 psi
190.0 bar
Pump flow:11.6 gpm
43.9 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift (at ends):6768 lbs
3069 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540
 1000
Engine RPM:540@2075
Dimensions & Tires
2WD Wheelbase:89.2 inches
226 cm
4WD Wheelbase:90 inches
228 cm
Weight:7077 to 8157 pounds
Front tire:7.50-16
2WD MC1 Rear tire:13.6-36
Full dimensions and tires ...
Electrical
Ground:negative
Charging amps:55
Batteries:2
Battery volts:12
Battery AH:55
