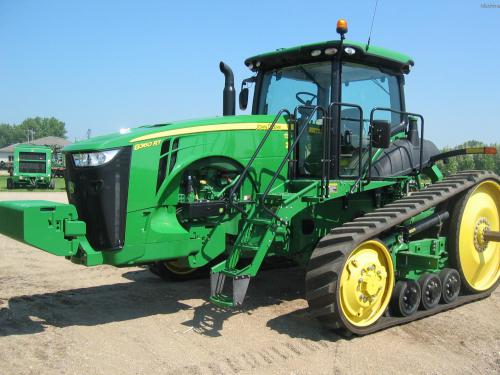

John Deere 8360RT Tractors
 |
|
Power: 360 hp
Date of manufacture : 2011 - 2013 |
| Production |
| Manufacturer: | John Deere
|
| Type: | Agricultural Crawler tractor
|
| Factory: | Waterloo, Iowa, USA
|
| Mechanical |
| Chassis: | crawler
|
| Steering: | electro-hydraulic power
|
| Cab: | CommandView II cab standard with heat and air-conditioning.
|
| Transmission: | infinitely variable transmission (IVT)
|
| Photos |
| | John Deere 8360RT photos... |
| Capacity |
| Hydraulic system: | 68.3 gal
258.5 L
|
| Hydraulics |
| Type: | closed center pressure-flow compensated
|
| Capacity: | 68.3 gal
258.5 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Rear valves: | 3 to 5
|
| Pump flow: | 35 gpm
132.5 lpm
|
| Total flow: | 60 gpm
227.1 lpm
|
| Tractor hitch |
| Rear Type: | 4N/3
|
| Rear lift (at 24"/610mm): | 19,300 lbs
8754 kg (2011)
|
| | 20,000 lbs
9072 kg (2012-2013)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1-3/4)
|
| Dimensions & Tracks |
| Wheelbase: | 99 inches
251 cm
|
| 16-inch track |
| Full dimensions and tracks ... |
| 8360RT Serial Numbers |
| Location: | Serial number on the right side of main tractor frame, below the engine.
|
photo of 8360RT serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 200
|
| Batteries: | 2
|
| Battery CCA: | 925
|
| Battery volts: | 12
|
|
