John Deere 8360R Tractors

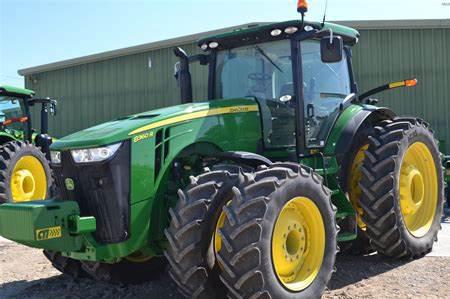

John Deere 8360R
Power: 360 hp
Date of manufacture :
2011 - 2013
Production
Manufacturer:John Deere
Type:Row-Crop tractor
Factory:Waterloo, Iowa, USA
Original price:$296,312 (2011)
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:front and rear lock
Steering:hydrostatic power
 ActiveCommand Steering (ACS) optional
Brakes:differential hydraulic wet disc
Trailer brakes:hydraulic and air optional
Cab:CommandView II cab standard with heat and air-conditioning.
Transmission:infinitely variable transmission (IVT)
Photos
John Deere 8360R photos...
Hydraulics
Type:closed center pressure-flow compensated
Pressure:2900 psi
200.0 bar
Rear valves:3 to 5
Pump flow:35 gpm
132.5 lpm
Total flow:60 gpm
227.1 lpm
Tractor hitch
Rear Type:4N/3
Rear lift (at 24"/610mm):18,300 lbs
8300 kg (2011)
 18,700 lbs
8482 kg (2012)
Front Hitch:3N/2 (optional)
Front lift (at ends):8,800 lbs
3991 kg
 11,450 lbs
5193 kg
 12,300 lbs
5579 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (1-3/4)
 1000 (1-3/8 optional)
 540 (1-3/8 optional)
Dimensions & Tires
Wheelbase:118.9 inches
302 cm
Weight:27218 to 30252 pounds
Front tire:420/85R34
Rear tire:480/80R50
Electrical
Ground:negative
Charging system:alternator
Charging amps:200
Batteries:2
Battery CCA:925
Battery volts:12
