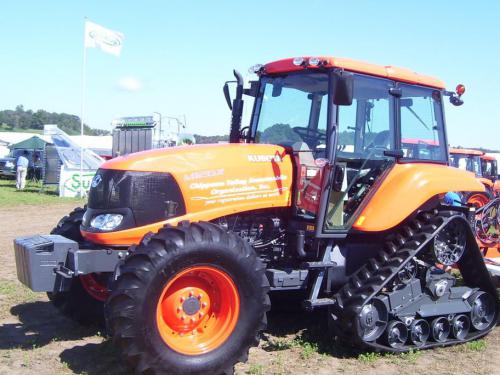

Kubota M126X Power Krawler Tractors
 |
|
Power: 125 hp
Date of manufacture : 2009 - 2014 |
| Production |
| Manufacturer: | Kubota
|
| Type: | Half-track Crawler tractor
|
| Original price: | $76,964
|
| Variants |
| M126X: | wheeled tractor
|
| M126X Power Krawler: | half-track
|
| Kubota M126X Power Krawler Power |
| Engine (net): | 125 hp
93.2 kW
|
| PTO (claimed): | 108 hp
80.5 kW
|
| Kubota M126X Power Krawler Engine |
| Mechanical |
| Chassis: | half-track
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with heat and air-conditioning. Optional radio/CD-player.
|
| Transmissions: | 16-speed partial powershift
|
| | 24-speed
|
| Photos |
| | Kubota M126X Power Krawler photos... |
| Capacity |
| Fuel: | 50.2 gal
190.0 L
|
| Hydraulic system: | 15.8 gal
59.8 L
|
| Front axle: | 17.5 qts
16.6 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 15.8 gal
59.8 L
|
| Valves: | 2 to 4
|
| Pump flow: | 20.4 gpm
77.2 lpm
|
| Total flow: | 35.7 gpm
135.1 lpm
|
| Steering flow: | 15.3 gpm
57.9 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift (at ends): | 5,809 lbs
2634 kg
|
| Rear lift (at 24"/610mm): | 5,203 lbs
2360 kg
|
| | 9,447 lbs
4285 kg (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Engine RPM: | 540@2035
1000@2210
|
| Dimensions & Tires |
| Wheelbase: | 105.9 inches
268 cm
|
| Weight: | 11,464 lbs
5200 kg
|
| Front tire: | 14.9R24
|
| Rear tire: | tracks
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 80
|
| Battery volts: | 12
|
|
