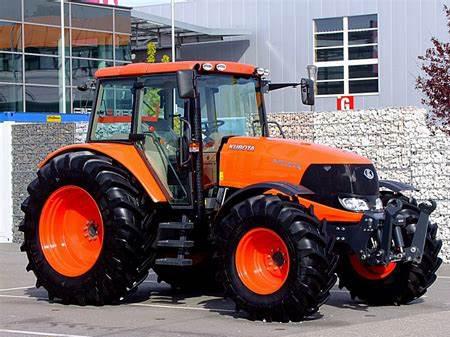

Kubota M130X Tractors

Kubota M130X
Power: 130 hp
Date of manufacture :
2010 - 2020
Production
Manufacturer:Kubota
Type:Utility tractor
Kubota M130X Power
Engine (net):130 hp
96.9 kW
PTO (claimed):113 hp
84.3 kW
Kubota M130X Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:hydraulic front and rear
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with air-conditioning.
Transmissions:16-speed 8-speed power shift
 24-speed creeper
Hydraulics
Valves:2 to 4
Pump flow:20.3 gpm
76.8 lpm
Tractor hitch
Rear Type:II
Control:position and lower-link draft control
Rear lift (at ends):12787 lbs
5800 kg
Rear lift (at 24"/610mm):10803 lbs
4900 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:105.9 inches
268 cm
Weight:9678 lbs
4389 kg
Electrical
Ground:negative
Charging system:alternator
Charging amps:80
Battery volts:12
